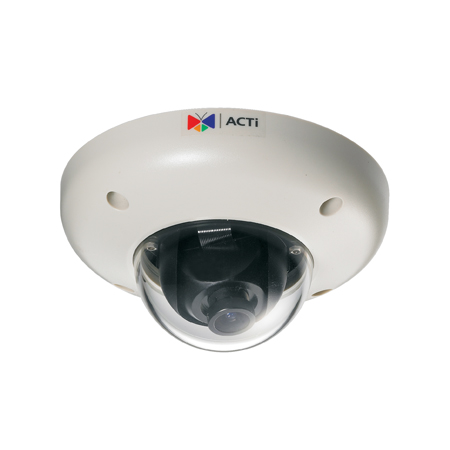

| Item No.:ACM-3701E Catalogue |
| |
Progressive Scan CMOS |
| |
Minimum illumination 0.5 lux at F1.0 |
| |
Built-in f3.6mm / F1.8 Megapixel fixed lens |
| |
8 fps at 1280 x 1024 resolution |
|
Selectable MPEG-4 SP, MJPEG compressions |
| |
Vandal proof casing |
| |
Video motion detection |
| |
Powered by PoE Class 3 |
|
 |

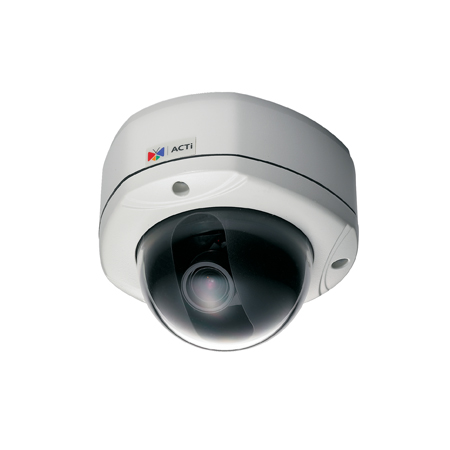

| Item No.:ACM-7411 Catalogue |
| |
1/3" Progressive Scan CMOS |
| |
Day and night function with mechanical IR cut filter |
| |
Minimum illumination 0.05 lux at F1.0 |
| |
Built-in f3.3~12 mm / F1.6 Megapixel vari-focal lens |
| |
8 fps at 1280 x 1024 resolution |
|
Selectable H.264, MPEG-4 SP, MJPEG compressions with dual streaming |
| |
Two-way audio |
| |
Video motion detection |
| |
Digital input and digital output |
| |
Vandal proof and weatherproof IP66 rated casing |
| |
Powered by PoE Class 3 / DC 12V |
|
 |

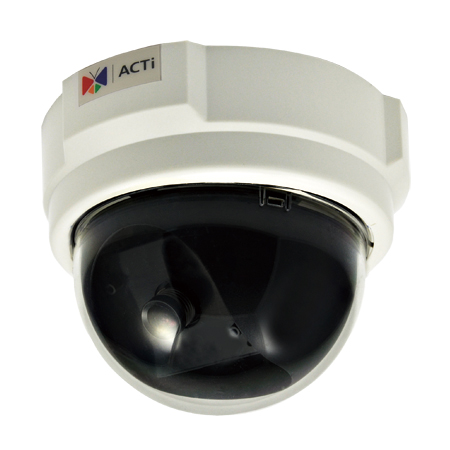

| Item No.:D51 Catalogue |
| |
Progressive Scan CMOS |
| |
Minimum illumination 0.1 lux at F2.0 |
| |
Built-in f3.6mm / F2.0 Megapixel fixed lens |
| |
30 fps at 1280 x 720 resolution |
|
Selectable H.264 HP, MJPEG compressions with dual streaming |
| |
Video motion detection |
| |
Powered by PoE Class 2 |
|
|
| Item No.:D52 Catalogue |
| |
Progressive Scan CMOS |
| |
Minimum illumination 0.1 lux at F2.0 |
| |
Built-in f3.6mm / F2.0 Megapixel fixed lens |
| |
15 fps at 2048 x 1536 resolution |
|
Selectable H.264 HP, MJPEG compressions with dual streaming |
| |
Video motion detection |
| |
Powered by PoE Class 2 |
|
|
| Item No.:E51 Catalogue |
| |
Progressive Scan CMOS |
| |
Minimum illumination 0.1 lux at F2.0 |
| |
Built-in f2.8mm / F2.0 Megapixel fixed lens |
| |
30 fps at 1280 x 720 resolution |
|
Selectable H.264 HP, MJPEG compressions with dual streaming |
| |
Video motion detection |
| |
Basic WDR function |
| |
Powered by PoE Class 2 |
|
 |

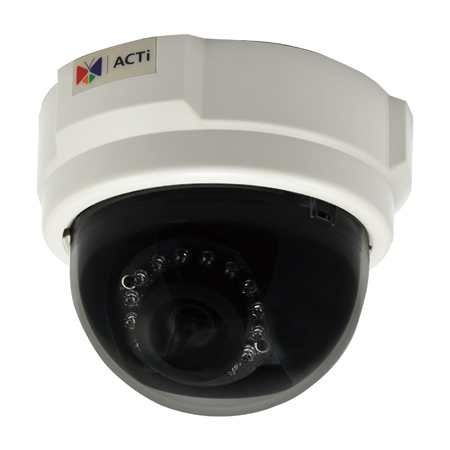

| Item No.:E52 Catalogue |
| |
Progressive Scan CMOS |
| |
Minimum illumination 0 lux with IR LED on |
| |
Built-in f3.6mm / F1.8 Megapixel fixed lens |
| |
30 fps at 1280 x 720 resolution |
|
Selectable H.264 HP, MJPEG compressions with dual streaming |
| |
Video motion detection |
| |
Basic WDR function |
| |
Powered by PoE Class 2 |
|
|
| Item No.:E53 Catalogue |
| |
Progressive Scan CMOS |
| |
Minimum illumination 0 lux with IR LED on |
| |
Built-in f3.6mm / F1.8 Megapixel fixed lens |
| |
15 fps at 2048 x 1536 resolution |
|
Selectable H.264 HP, MJPEG compressions with dual streaming |
| |
Video motion detection |
| |
Basic WDR function |
| |
Powered by PoE Class 2 |
|
|
| Item No.:E54 Catalogue |
| |
Progressive Scan CMOS |
| |
Minimum illumination 0 lux with IR LED on |
| |
Built-in f3.6mm / F1.8 Megapixel fixed lens |
| |
15 fps at 2592 x 1944 resolution |
|
Selectable H.264 HP, MJPEG compressions with dual streaming |
| |
Video motion detection |
| |
Basic WDR function |
| |
Powered by PoE Class 2 |
|
 |

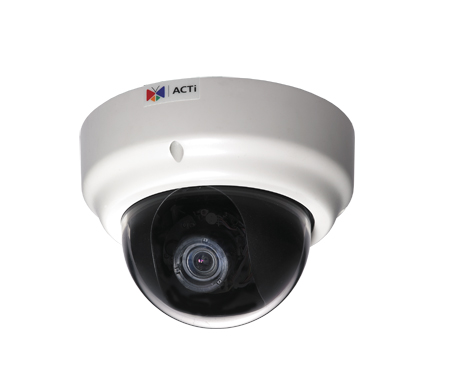

| Item No.:KCM-3311 Catalogue |
| |
1/3.2" Progressive Scan CMOS |
| |
Day and night function with mechanical IR cut filter |
| |
Minimum illumination 0.05 lux at F1.4 |
| |
3.6 x optical zoom |
|
Built-in f3.3-12 mm / F1.4 Megapixel P-Iris zoom lens |
| |
8 fps at 2032 x 1920 resolution (1422 TV lines) |
|
Selectable H.264 HP, MJPEG compressions with dual streaming |
| |
Up to 4 cropped regions as independent channels |
| |
ExDR (Extreme Dynamic Range) |
| |
2D+3D Digital noise reduction |
| |
Video Motion Detection |
| |
Powered by PoE Class |
|
