STAND ALONE DVR |
|
|
PLUG&PLAY IP SOLUTION |
|
|
ACTI IP CAMERA |
|
|
TX IP CAMERA |
|
|
 |

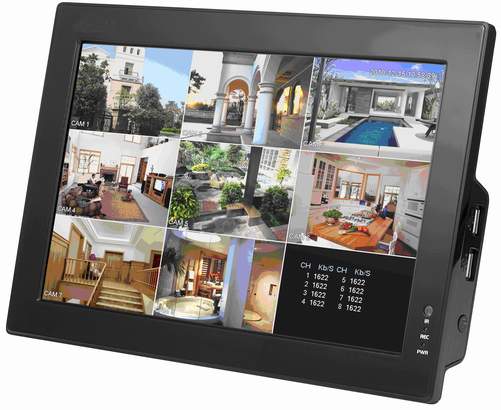

| CVR04/08-10(T) 4ch UL CE FCC Catalogue |
| |
4/8 channel combo standalone DVR |
| |
H.264 video compression algorithm ideal |
|
Support touch screen for easier operation(-T only)
|
| |
Dual encoding stream supported |
|
Each channel at CIF realtime or special channel at D1 recording |
|
TV(BNC)/ VGA/ HDMI synchonous video output |
|
Smart video detection: MD, camera blank, video loss |
| |
4/8 channel simultaneous playback |
|
3D intelligent positioning with THYONIX PTZ dome |
|
Easy backup: USB devices, network download |
|
Alarm triggering screen tips, buzzer, PTZ, email, FTP upload |
| |
Supports 1 SATA 2.5 inch HDD, 2 USB2.0 |
|
Built-in web server, multi-DVR client, MSS & CMS |
|
 |
| TS-DVR04AS-UD 4ch UL CE FCC CATALOGUE |
| |
4ch ATM specific standalone DVR |
| |
H.264 video compression algorithm ideal |
|
Each channel at CIF or 6/7fps at D1 and 1st channel at 25/30fps D1 recording
|
| |
Dual encoding stream supported |
|
Up to 4 cameras with SXGA(1280 x 1024) display |
|
TV(BNC)/ VGA/ HDMI synchonous video output |
|
Smart video detection: MD, camera blank, video loss |
| |
4ch simultaneous playback |
|
3D intelligent positioning with THYONIX PTZ dome |
|
Easy backup: USB devices, network download |
|
Alarm triggering screen tips, buzzer, PTZ, email, FTP upload |
| |
Up to 2 SATA slots, 2 USB 2.0 |
|
Built-in web server, multi-DVR client, MSS & CMS |
|
|
| TS-DVR04AH-UD 4ch UL CE FCC CATALOGUE |
| |
4ch ATM specific standalone DVR |
| |
H.264 video compression algorithm ideal |
|
Each channel at CIF and special channel at D1 recording: TS-DVR04AL-U(D); full channel at D1 realtime recording: TS-DVR04AH-U(D)
|
| |
Dual encoding stream supported |
|
Up to 4 cameras with SXGA(1280 x 1024) display |
|
TV(BNC)/ VGA/ HDMI synchonous video output |
|
Smart video detection: MD, camera blank, video loss |
| |
4ch simultaneous playback |
|
3D intelligent positioning with THYONIX PTZ dome |
|
Easy backup: USB devices, network download |
|
Alarm triggering screen tips, buzzer, PTZ, email, FTP upload |
| |
Up to 4 SATA slots, 1 eSATA, 2 USB 2.0 |
|
Built-in web server, multi-DVR client, MSS & CMS |
|
 |
| TS-DVR04SN5 4 channel UL CE FCC Catalogue |
| |
H.264 video codec, Dual-encoding streams |
| |
Mobile phone surveillance |
| |
4channel playback simultaneously |
| |
HDMI output(high definition) |
|
Alarm triggers screen tips,PTZ movement,e-mail & FTP upload |
|
Smart HDD management:non-working HDD hibernation,HDD faulty alarm,Raid function |
|
Powerful network software:built-in web server,multi-DVR client & CMS |
|
Realtime live display up to 4 cameras with 720P high definition, up to 100/120 fps recording
|
| |
Graphic user interface for easy operation |
|
Multi-function:display, record, playback, burn and internet access at the same time |
|
Easy backup methods: USB devices, CD-RW/DVD-RW & network download |
|
Free from any software installation for playing backup file |
|
Equipped with 4-SATA slots to allow 4pcs HDD(no limit) inside of DVR |
| |
Internet access through IE browser |
|
Pan Tilt Zoom and Speed Dome Control: more than 60 protocols supported, preset, scan, auto pan, auto tour, pattern, auxiliary function supported. And with TX Speed Dome, 3D intelligent positioning function supported
|
| |
Computer mouse and IR remote control included |
|
|
| TS-DVR08SN5 8 channel UL CE FCC Catalogue |
| |
H.264 video codec, Dual-encoding streams |
| |
Mobile phone surveillance |
| |
8channel playback simultaneously |
| |
HDMI output(high definition) |
|
Alarm triggers screen tips,PTZ movement,e-mail & FTP upload |
|
Smart HDD management:non-working HDD hibernation,HDD faulty alarm,Raid function |
|
Powerful network software:built-in web server,multi-DVR client & CMS |
|
Realtime live display up to 8 cameras with 720P high definition, up to 200/240 fps recording
|
| |
Graphic user interface for easy operation |
|
Multi-function:display, record, playback, burn and internet access at the same time |
|
Easy backup methods: USB devices, CD-RW/DVD-RW & network download |
|
Free from any software installation for playing backup file |
|
Equipped with 4-SATA slots to allow 4pcs HDD(no limit) inside of DVR |
| |
Internet access through IE browser |
|
Pan Tilt Zoom and Speed Dome Control: more than 60 protocols supported, preset, scan, auto pan, auto tour, pattern, auxiliary function supported. And with TX Speed Dome, 3D intelligent positioning function supported
|
| |
Computer mouse and IR remote control included |
|
|
| TS-DVR16SN5 16 channel UL CE FCC Catalogue |
| |
H.264 video codec, Dual-encoding streams |
| |
Mobile phone surveillance |
| |
16channel playback simultaneously |
| |
HDMI output(high definition) |
|
Alarm triggers screen tips,PTZ movement,e-mail & FTP upload |
|
Smart HDD management:non-working HDD hibernation,HDD faulty alarm,Raid function |
|
Powerful network software:built-in web server,multi-DVR client & CMS |
|
Realtime live display up to 16 cameras with 720P high definition, up to 400/480 fps recording
|
| |
Graphic user interface for easy operation |
|
Multi-function:display, record, playback, burn and internet access at the same time |
|
Easy backup methods: USB devices, CD-RW/DVD-RW & network download |
|
Free from any software installation for playing backup file |
|
Equipped with 4-SATA slots to allow 4pcs HDD(no limit) inside of DVR |
| |
Internet access through IE browser |
|
Pan Tilt Zoom and Speed Dome Control: more than 60 protocols supported, preset, scan, auto pan, auto tour, pattern, auxiliary function supported. And with TX Speed Dome, 3D intelligent positioning function supported
|
| |
Computer mouse and IR remote control included |
|
|
