STAND ALONE DVR |
|
|
PLUG&PLAY IP SOLUTION |
|
|
ACTI IP CAMERA |
|
|
TX IP CAMERA |
|
|
 |

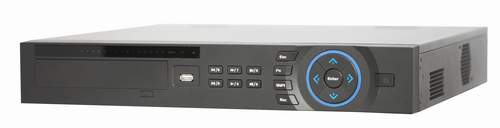

| TS-DVR04LF-L 4CH UL CE FCC Catalogue |
| |
H.264 video codec, Dual-encoding streams |
| |
4 cameras with 1080p realtime preview |
|
2CIF(25/30fps)/2ch@D1+2ch@CIF(25/30 fps)/ D1(12/15fps) |
|
Powerful network software:built-in web server,multi-DVR client & CMS |
| |
Graphic user interface for easy operation |
|
Equipped with 4 SATA slots to allow four HDD(no limit) inside of DVR |
| |
Internet access through IE browser |
| |
Computer mouse and IR remote control included |
|
|
| TS-DVR08LF-L 8CH UL CE FCC Catalogue |
| |
H.264 video codec, Dual-encoding streams |
| |
8 cameras with 1080p realtime preview |
|
2CIF(25/30fps)/2ch@D1+2ch@CIF(25/30 fps)/ D1(12/15fps) |
|
Powerful network software:built-in web server,multi-DVR client & CMS |
| |
Graphic user interface for easy operation |
|
Equipped with 4 SATA slots to allow four HDD(no limit) inside of DVR |
| |
Internet access through IE browser |
| |
Computer mouse and IR remote control included |
|
|
| TS-DVR08LF-L 16CH UL CE FCC Catalogue |
| |
H.264 video codec, Dual-encoding streams |
| |
16 cameras with 1080p realtime preview |
|
2CIF(25/30fps)/2ch@D1+2ch@CIF(25/30 fps)/ D1(12/15fps) |
|
Powerful network software:built-in web server,multi-DVR client & CMS |
| |
Graphic user interface for easy operation |
|
Equipped with 4 SATA slots to allow four HDD(no limit) inside of DVR |
| |
Internet access through IE browser |
| |
Computer mouse and IR remote control included |
|
 |
| TS-EDVR0404 4 channel UL CE FCC Catalogue |
| |
H.264 video codec, Dual-encoding streams |
| |
Mobile phone surveillance |
| |
4channel playback simultaneously |
|
Powerful network software:built-in web server,multi-DVR client & CMS |
| |
Graphic user interface for easy operation |
|
Equipped with two SATA slots to allow two HDD(no limit) inside of DVR |
| |
Internet access through IE browser |
| |
Computer mouse and IR remote control included |
|
 |

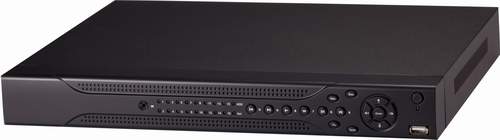

| TS-DVR04LE 4 channel UL CE FCC Catalogue |
| |
H.264 video codec, Dual-encoding streams |
| |
Mobile phone surveillance |
| |
4channel playback simultaneously |
| |
HDMI output(high definition) |
|
Alarm triggers screen tips,PTZ movement,e-mail & FTP upload |
|
Smart HDD management:non-working HDD hibernation,HDD faulty alarm,Raid function |
|
Powerful network software:built-in web server,multi-DVR client & CMS |
|
Realtime live display up to 16 cameras with 720P high definition, up to 100/120 fps recording
|
| |
Graphic user interface for easy operation |
|
Multi-function:display, record, playback, burn and internet access at the same time |
|
Easy backup methods: USB devices, external DVD-RW & network download |
|
Free from any software installation for playing backup file |
|
Equipped with one SATA slots to allow one HDD(no limit) inside of DVR |
| |
Internet access through IE browser |
|
Pan Tilt Zoom and Speed Dome Control: more than 60 protocols supported, preset, scan, auto pan, auto tour, pattern, auxiliary function supported. And with TX Speed Dome, 3D intelligent positioning function supported
|
| |
Computer mouse and IR remote control included |
|
|
| TS-DVR08LE 8 channel UL CE FCC Catalogue |
| |
H.264 video codec, Dual-encoding streams |
| |
Mobile phone surveillance |
| |
8channel playback simultaneously |
| |
HDMI output(high definition) |
|
Alarm triggers screen tips,PTZ movement,e-mail & FTP upload |
|
Smart HDD management:non-working HDD hibernation,HDD faulty alarm,Raid function |
|
Powerful network software:built-in web server,multi-DVR client & CMS |
|
Realtime live display up to 8 cameras with 720P high definition, up to 200/240 fps recording
|
| |
Graphic user interface for easy operation |
|
Multi-function:display, record, playback, burn and internet access at the same time |
|
Easy backup methods: USB devices, external CD-RW/DVD-RW & network download |
|
Free from any software installation for playing backup file |
|
Equipped with one SATA slots to allow one HDD(no limit) inside of DVR |
| |
Internet access through IE browser |
|
Pan Tilt Zoom and Speed Dome Control: more than 60 protocols supported, preset, scan, auto pan, auto tour, pattern, auxiliary function supported. And with TX Speed Dome, 3D intelligent positioning function supported
|
| |
Computer mouse and IR remote control included |
|
|
| TS-DVR16LE 16 channel UL CE FCC Catalogue |
| |
H.264 video codec, Dual-encoding streams |
| |
Mobile phone surveillance |
| |
16channel playback simultaneously |
| |
HDMI output(high definition) |
|
Alarm triggers screen tips,PTZ movement,e-mail & FTP upload |
|
Smart HDD management:non-working HDD hibernation,HDD faulty alarm,Raid function |
|
Powerful network software:built-in web server,multi-DVR client & CMS |
|
Realtime live display up to 16 cameras with 720P high definition, up to 400/480 fps recording
|
| |
Graphic user interface for easy operation |
|
Multi-function:display, record, playback, burn and internet access at the same time |
|
Easy backup methods: USB devices, external CD-RW/DVD-RW & network download |
|
Free from any software installation for playing backup file |
|
Equipped with one SATA slots to allow one HDD(no limit) inside of DVR |
| |
Internet access through IE browser |
|
Pan Tilt Zoom and Speed Dome Control: more than 60 protocols supported, preset, scan, auto pan, auto tour, pattern, auxiliary function supported. And with TX Speed Dome, 3D intelligent positioning function supported
|
| |
Computer mouse and IR remote control included |
|
|
